Structural Crane Grillages
Heavy-Duty Support Systems

Crane Grillages

Mission-Critical Integrity

Bhullar Group is a leader in the manufacturing of high capacity crane grillage solutions. Our in house capabilities enable us to manufacture to order whilst offering fast turn around times and competitive pricing. We ensure all grillages are trial fit prior to delivery and preassembled to reduce site handling time.

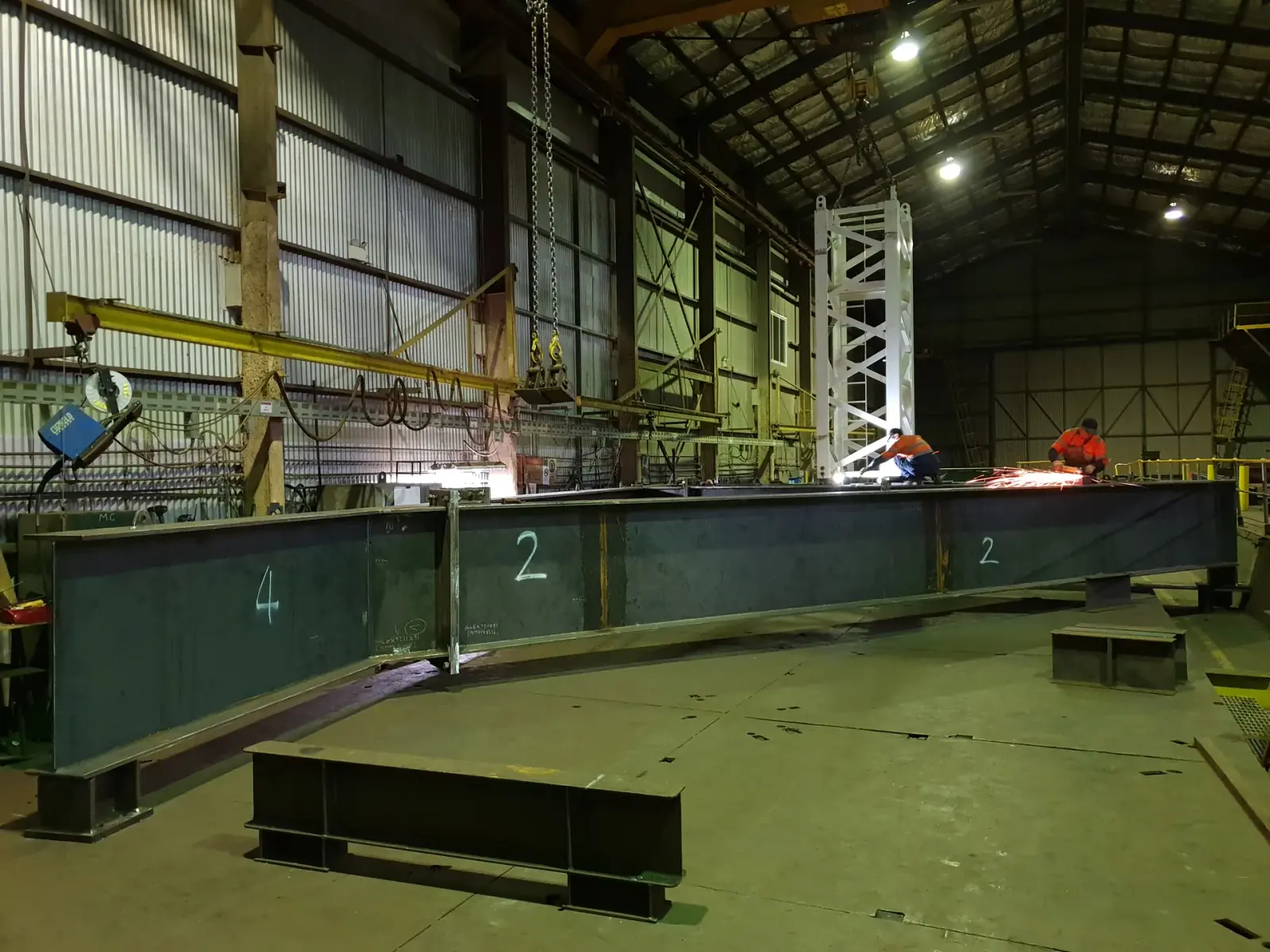

Inhouse manufacturing, processing, welding, trial fit
Trial Fit and tested prior to delivery
Rapid turn around times
Full traceability & compliance

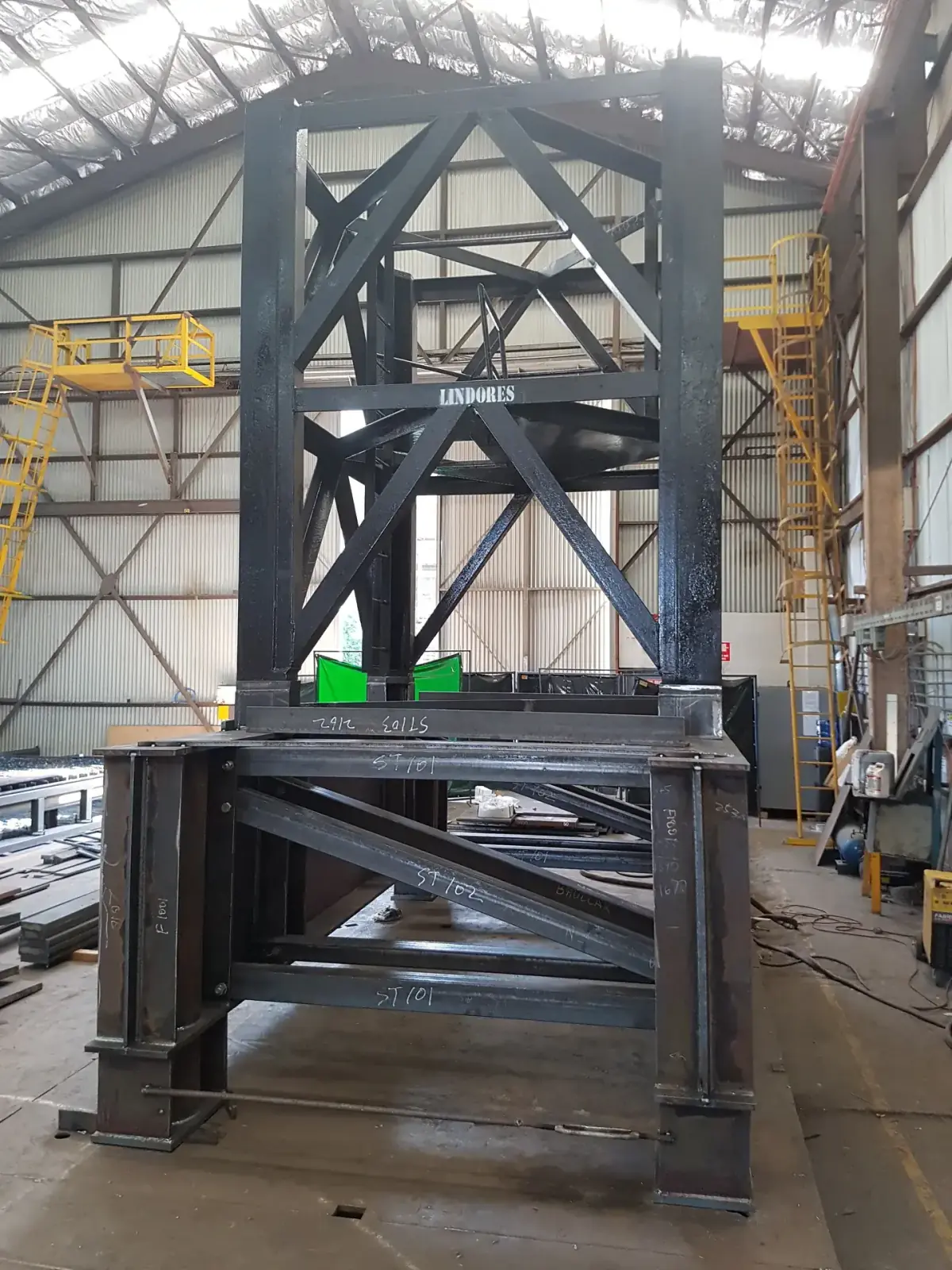

Crane Grillages - Gallery Image 1

Precision-Fabricated Support Solutions

Precision-fabricated grillage systems tailored for diverse construction environments and crane configurations.

Internal Crane Grillages

Precision-fabricated platforms manufactured for tower cranes positioned within building cores.

Core Features

  • Optimised for core-wall anchoring
  • High-capacity load distribution
  • Precision-machined connection points
  • Modular design for easy assembly

Applications

High-rise building coresCommercial tower constructionMulti-storey residentialComplex structures

External Support Grillages

Robust external platforms for cranes located outside the building perimeter or on difficult terrain.

Core Features

  • External shear-key integration
  • Weather-resistant finishes
  • Project-specific geometric fabrication
  • Full NDT verification

Applications

Perimeter crane mountingRestricted site accessInfrastructure projectsBridge construction

Foundation Grillages

Heavy-duty steel grillages manufactured to precise project specifications for ground-based tower crane applications.

Core Features

  • In-house beam fabrication
  • Fast turnaround times
  • Precision in-house trial fit
  • Extreme axial load capacity

Applications

Ground-based crane supportsHeavy civil worksIndustrial facilitiesPower plant construction

Custom Manufactured Systems

Bespoke grillage solutions manufactured to project designs for unique architectural geometries and specialised requirements.

Core Features

  • High-clearance trial fit
  • Full NDT verification
  • Custom industrial painting
  • Complex geometry fabrication

Applications

Architectural landmarksNon-standard structuresRetrofitting crane supportsSpecialised industrial sites

Questions buyers ask

What is a crane grillage?

A steel frame that spreads a tower crane's loads into its foundation or into the building structure it stands on.

What types of crane grillage do you make?

All types, made to order: internal, external and foundation grillages, including for complex sites with unusual requirements.

Are grillages trial fitted before delivery?

Yes. Every grillage is fully trial fitted in our workshop with its crane feet, stools and jigs.

Do you design the grillage?

No. We fabricate to the design from the crane supplier or the project engineer.

What testing is done?

Welds are tested by ultrasonic testing (UT) and magnetic particle inspection (MPI), as the engineer's drawings specify.

How fast can you turn a grillage around?

Typically 4 to 6 weeks from approved issued-for-fabrication (IFF) drawings, depending on complexity and our workload.
